Our basic configuration :
| Window : | Ø1 inch, 1030nm coated |
| Beam height : | 75mm without breadboard |
| Mechanical assembly : | 2x 1-inch Cells (SMA Mount) |
| Gas port threading : | 3x female 7/16-20 UNF |
| Compatibility : | 30mm Thorlabs cage system |
| Operating pressuree : | 25 bars max |
Options 0

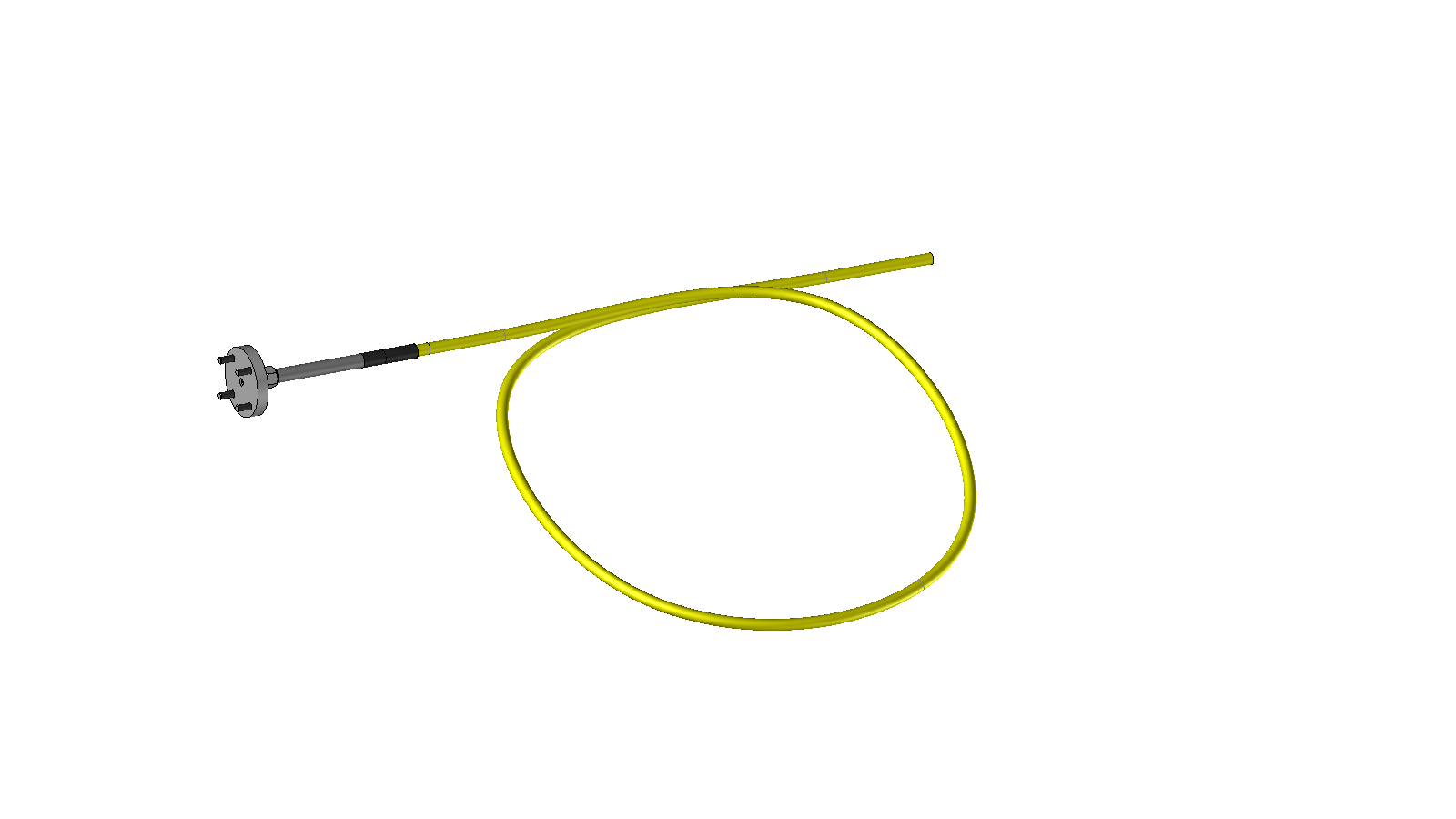

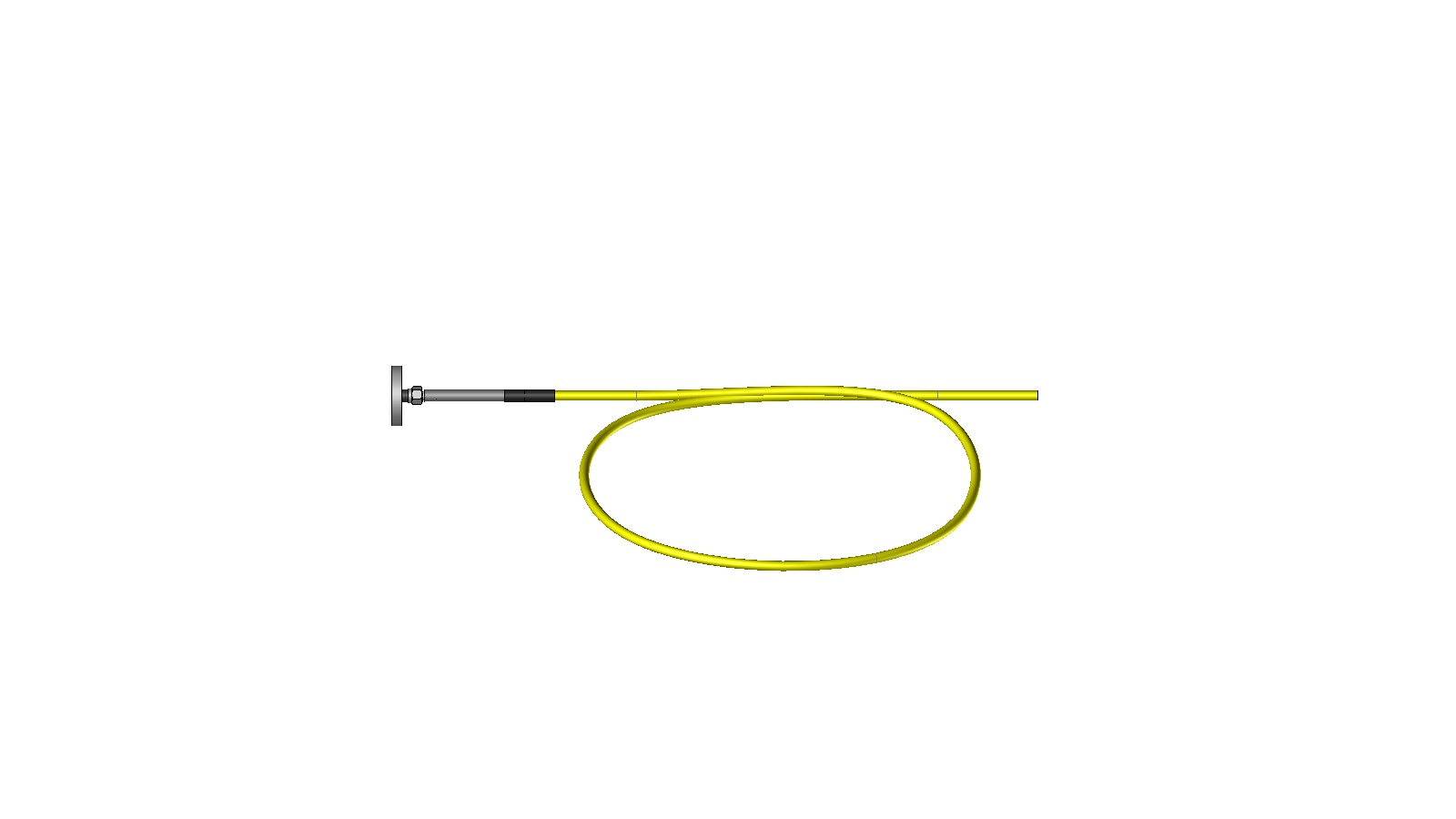

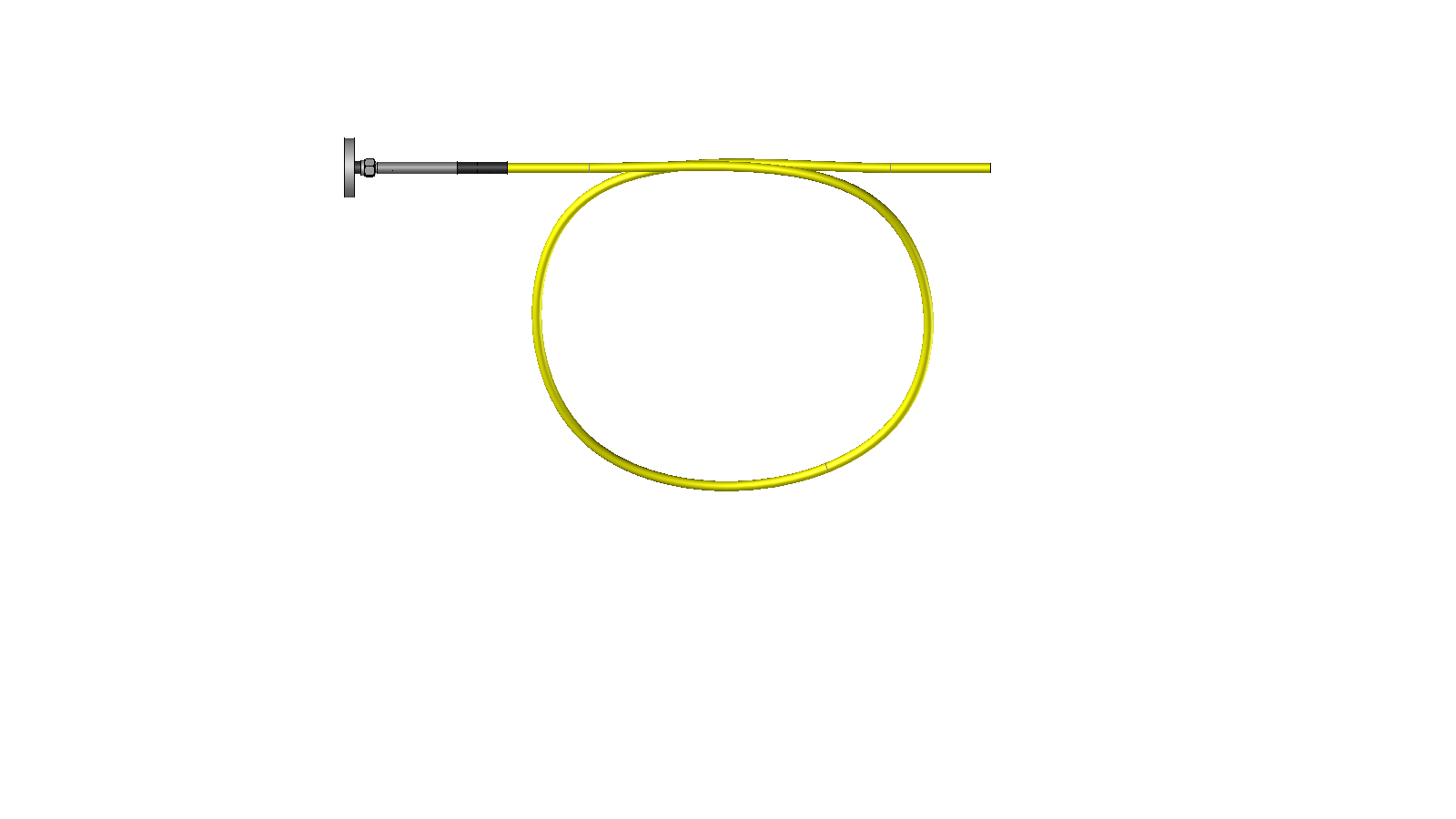

SMA-connectorized fibre patchcord

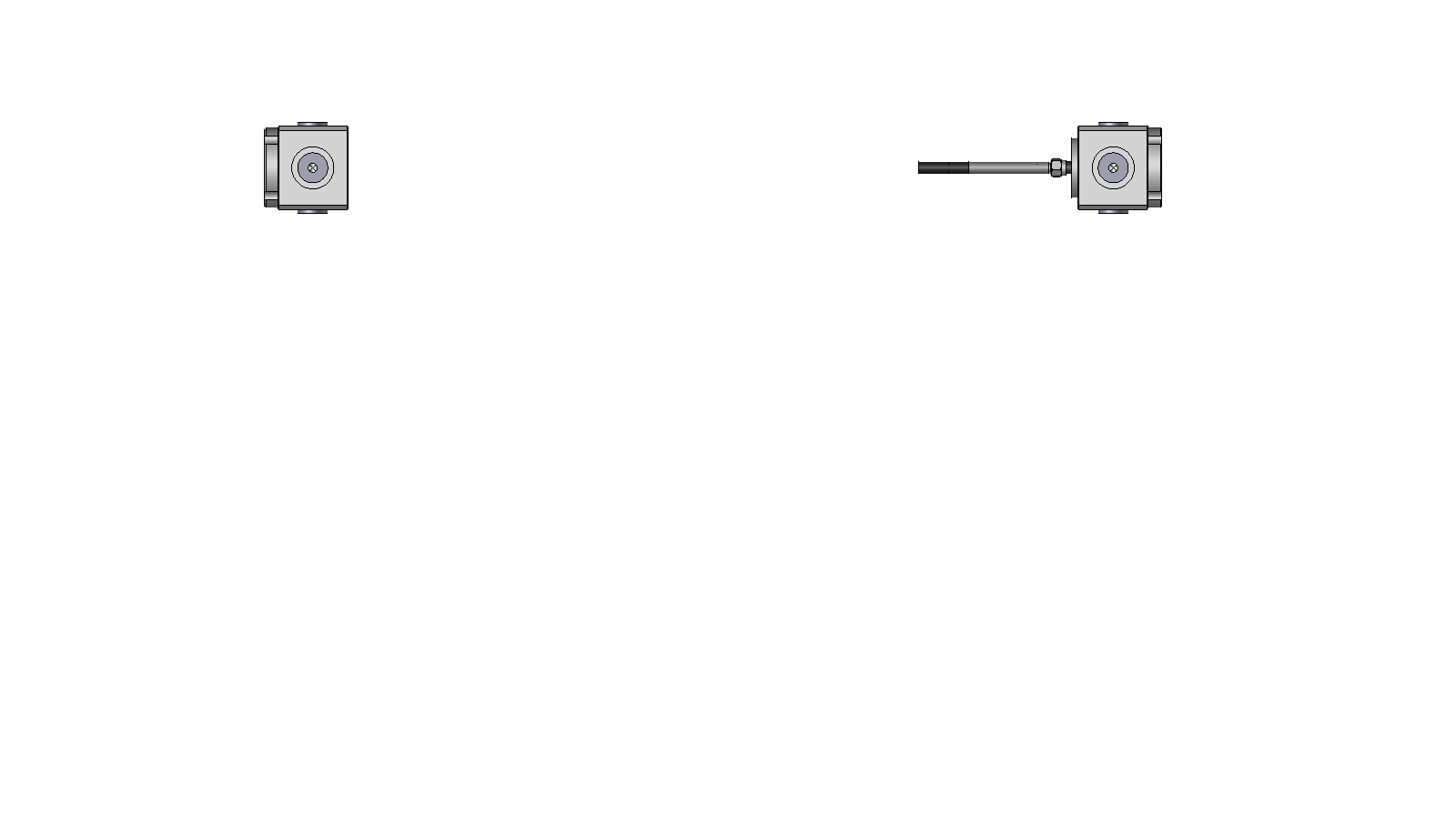

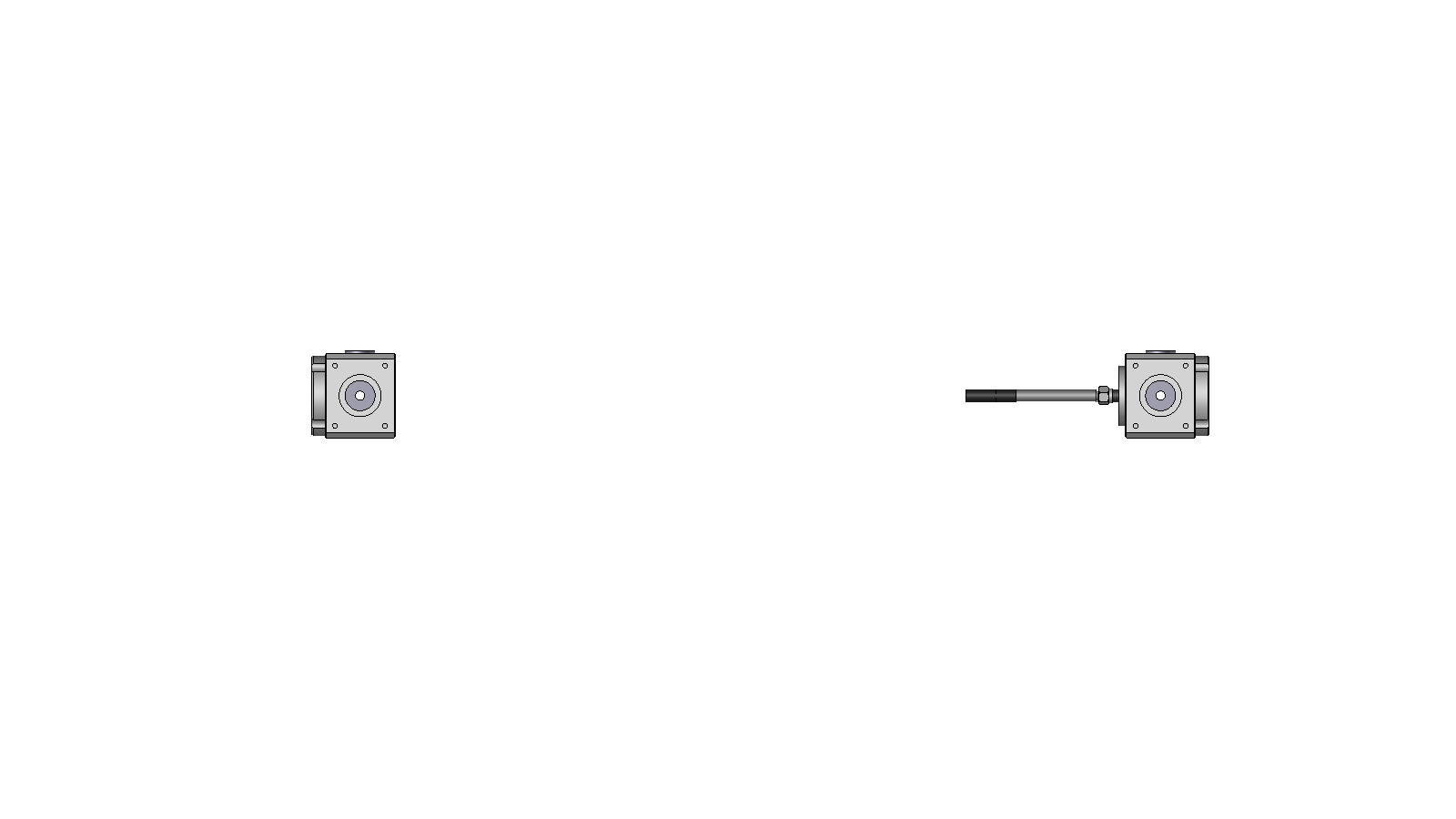

Fibre-adapted gas cells

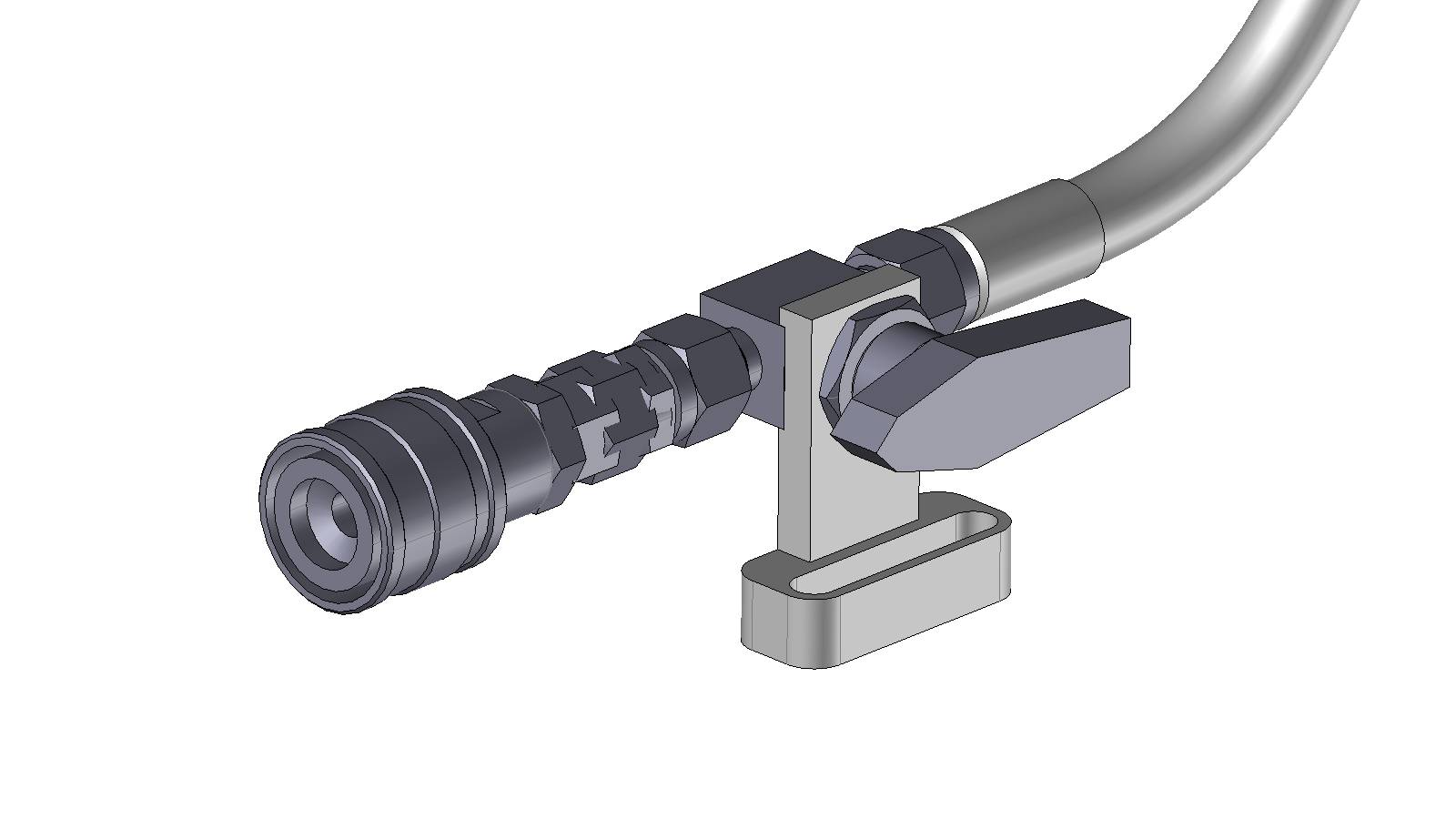

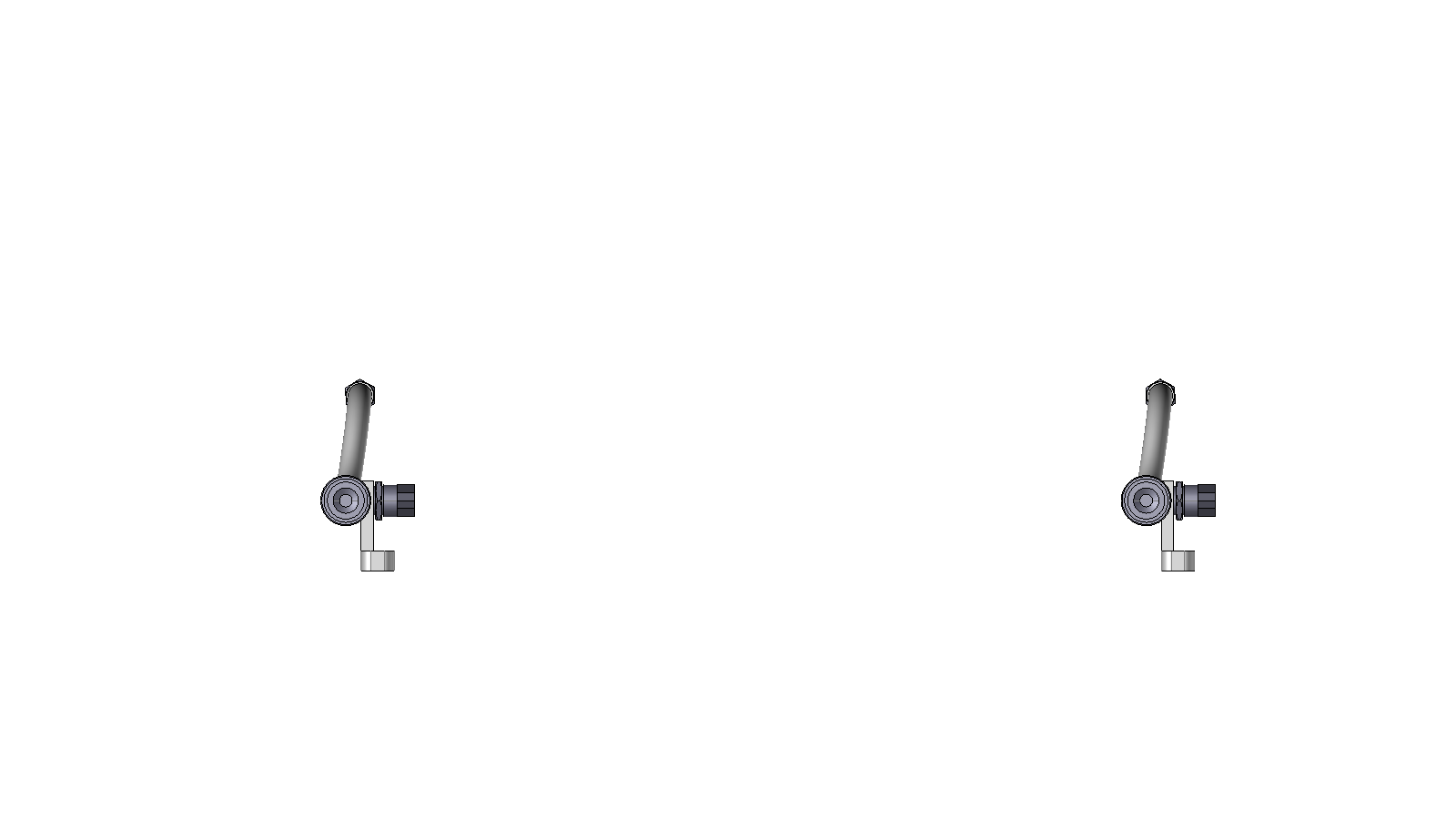

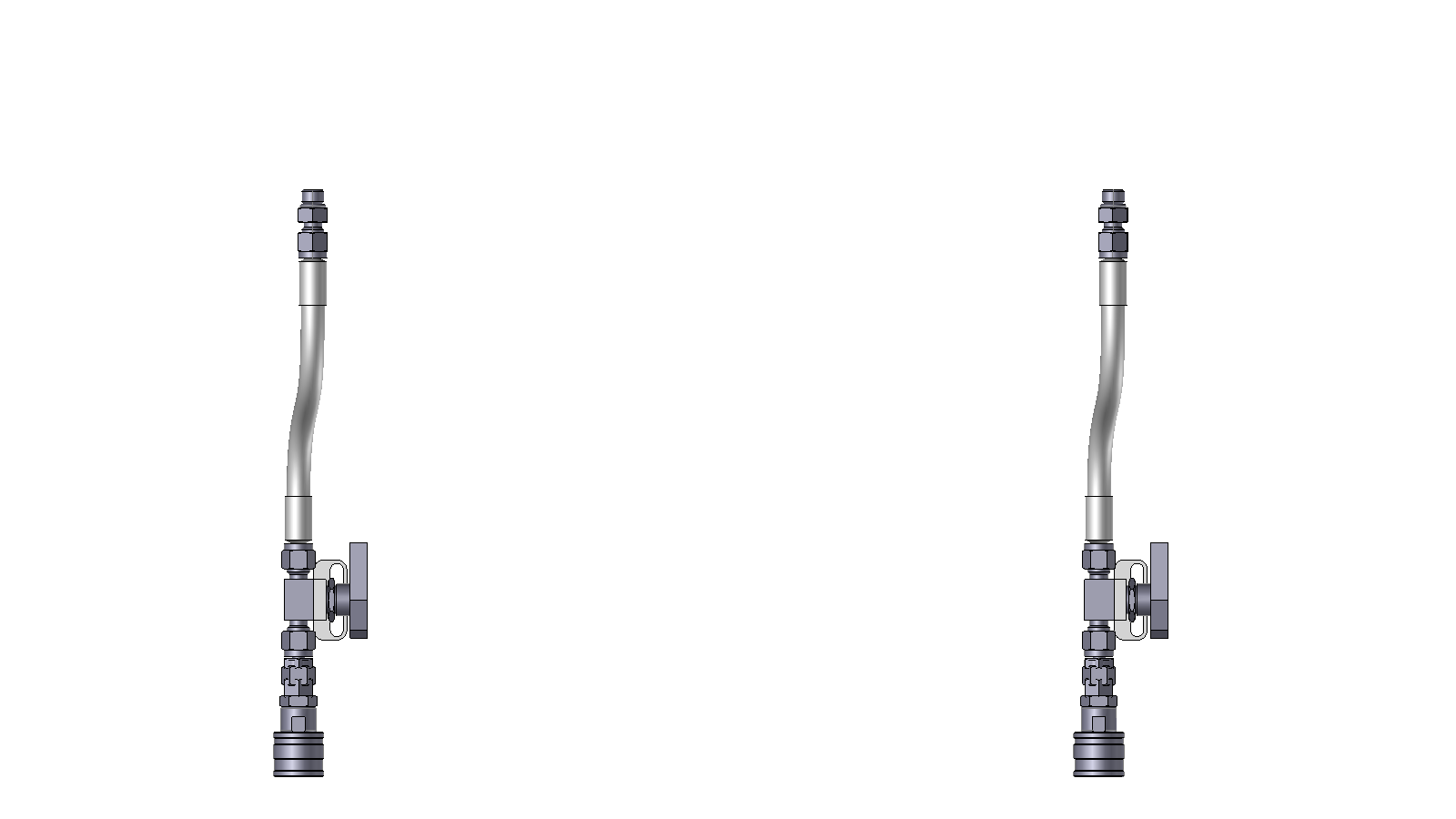

Gas connection tubing - single
Connect to gas bottle , enables gas filling of the fiber

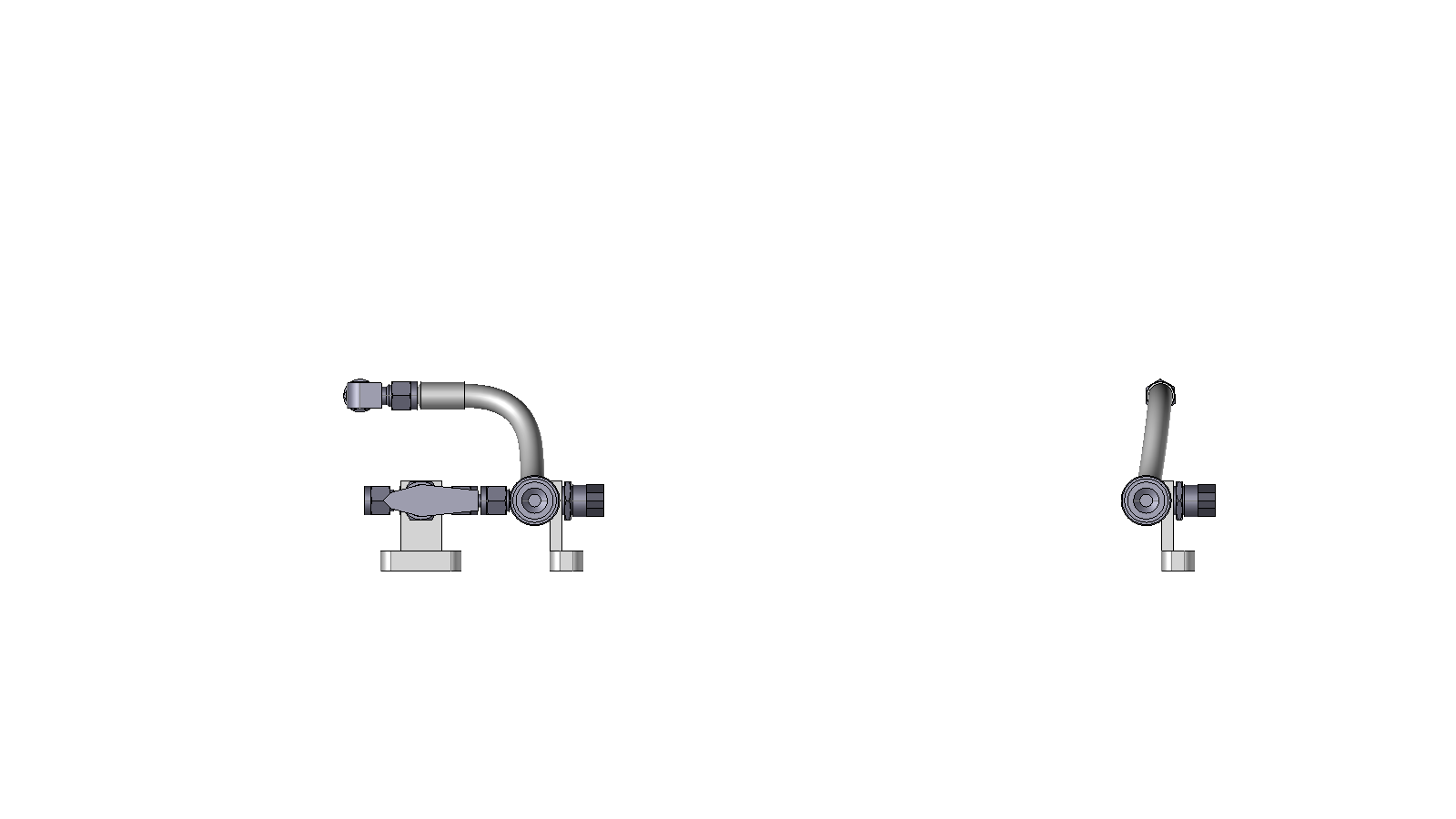

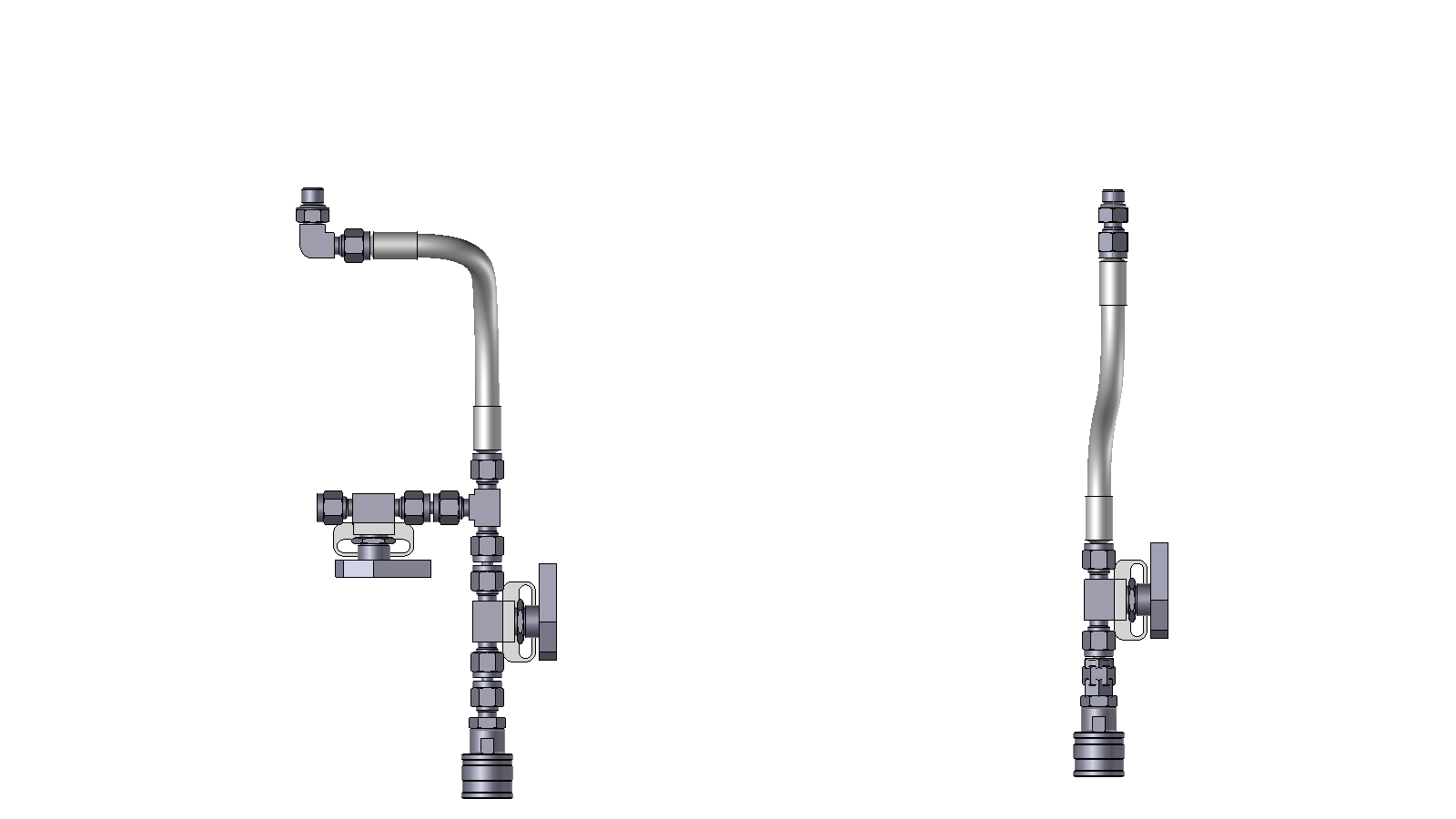

Gas connection tubing - double
Connect to a vacuum pomp / connect to gas bottle

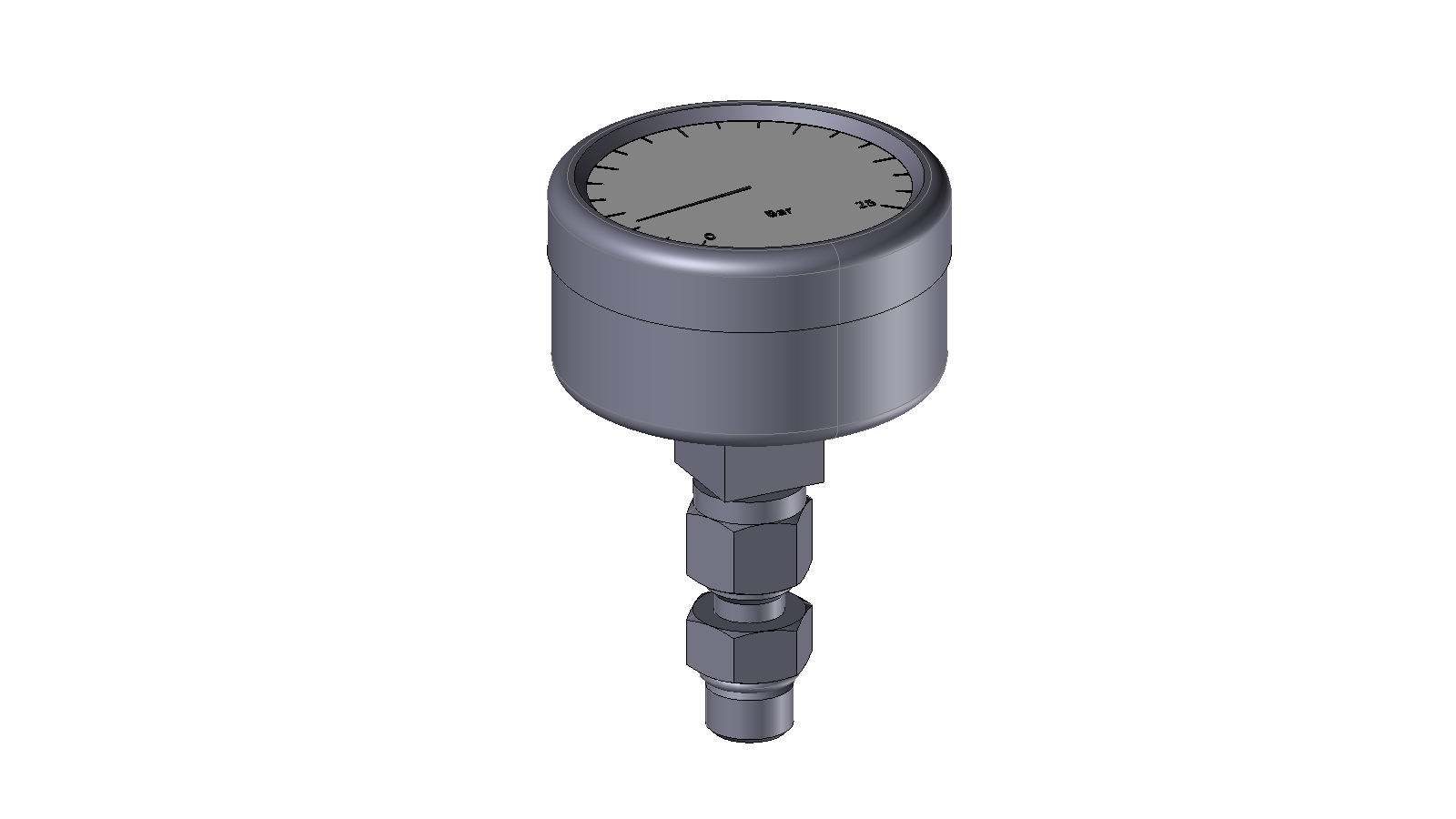

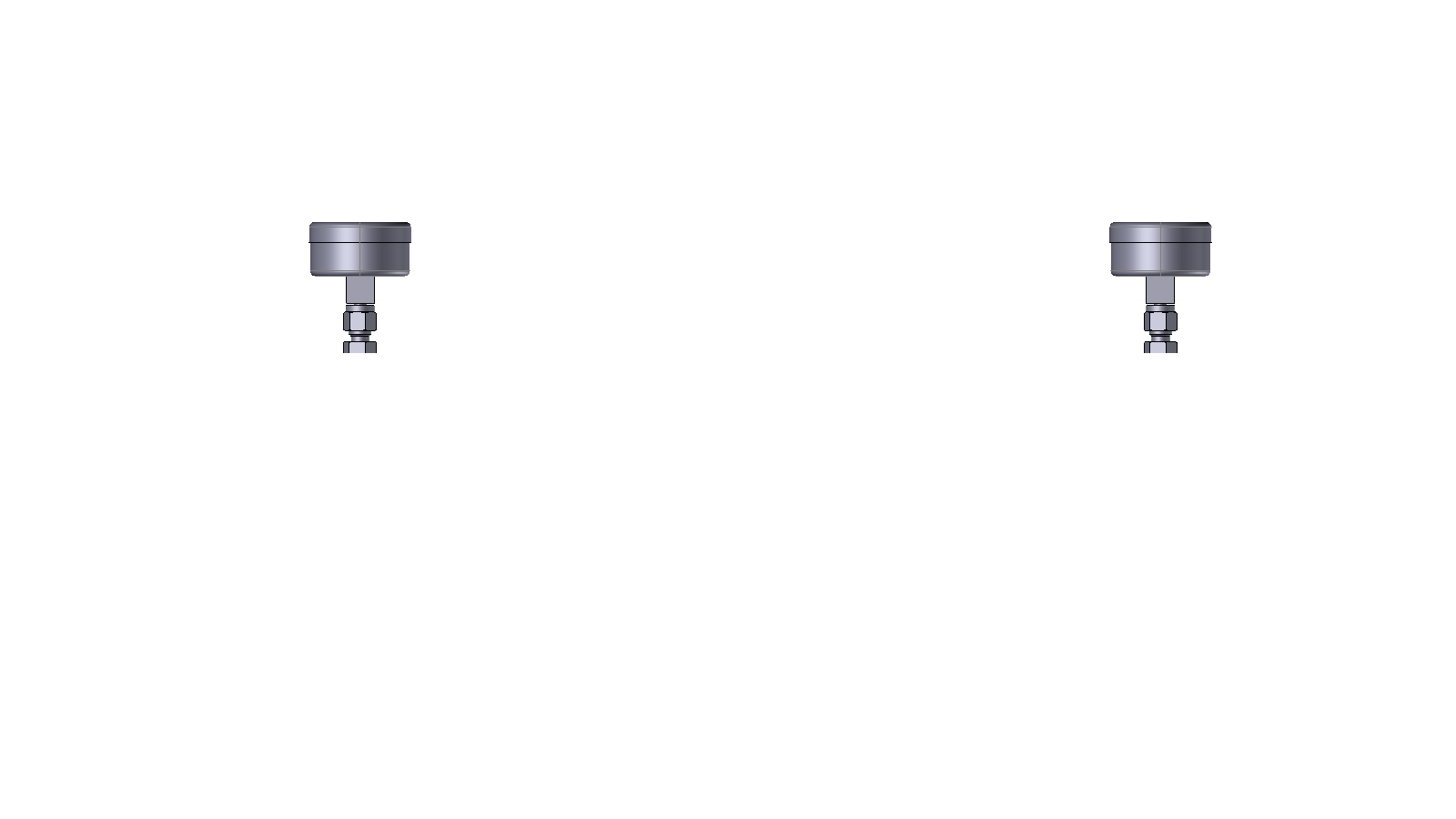

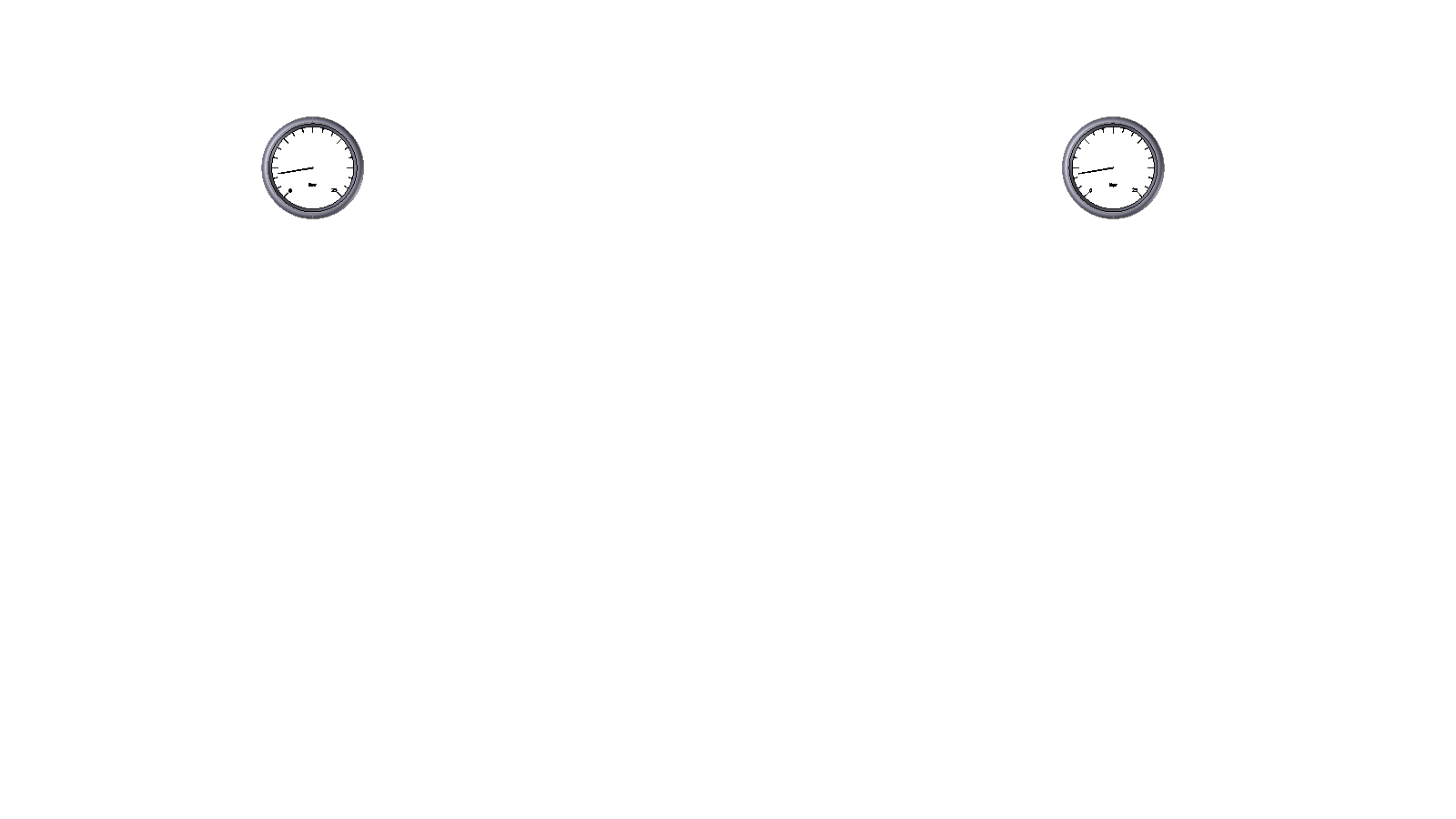

Manometers
Gauge for monitoring the gas pressure within the optical system

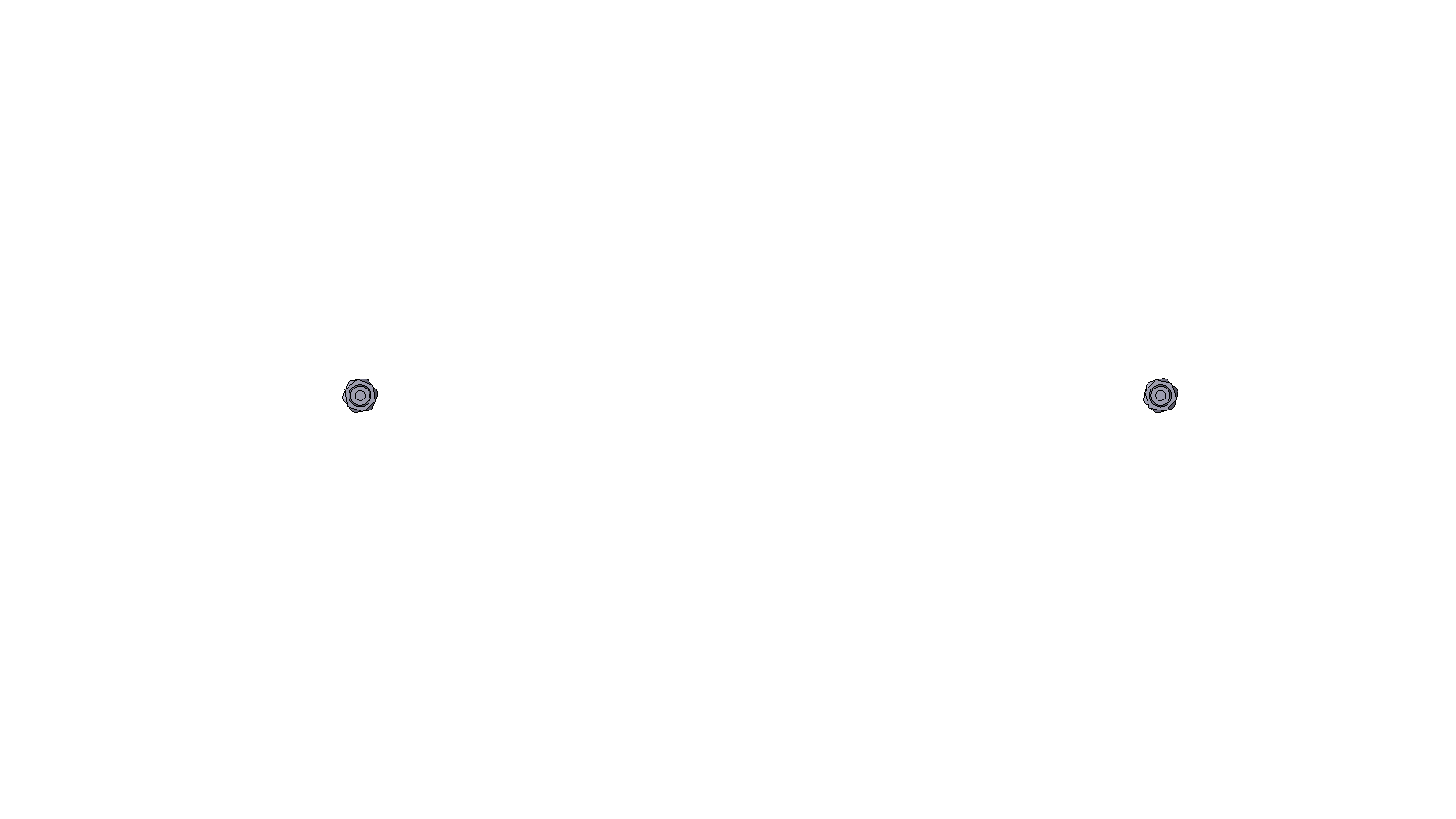

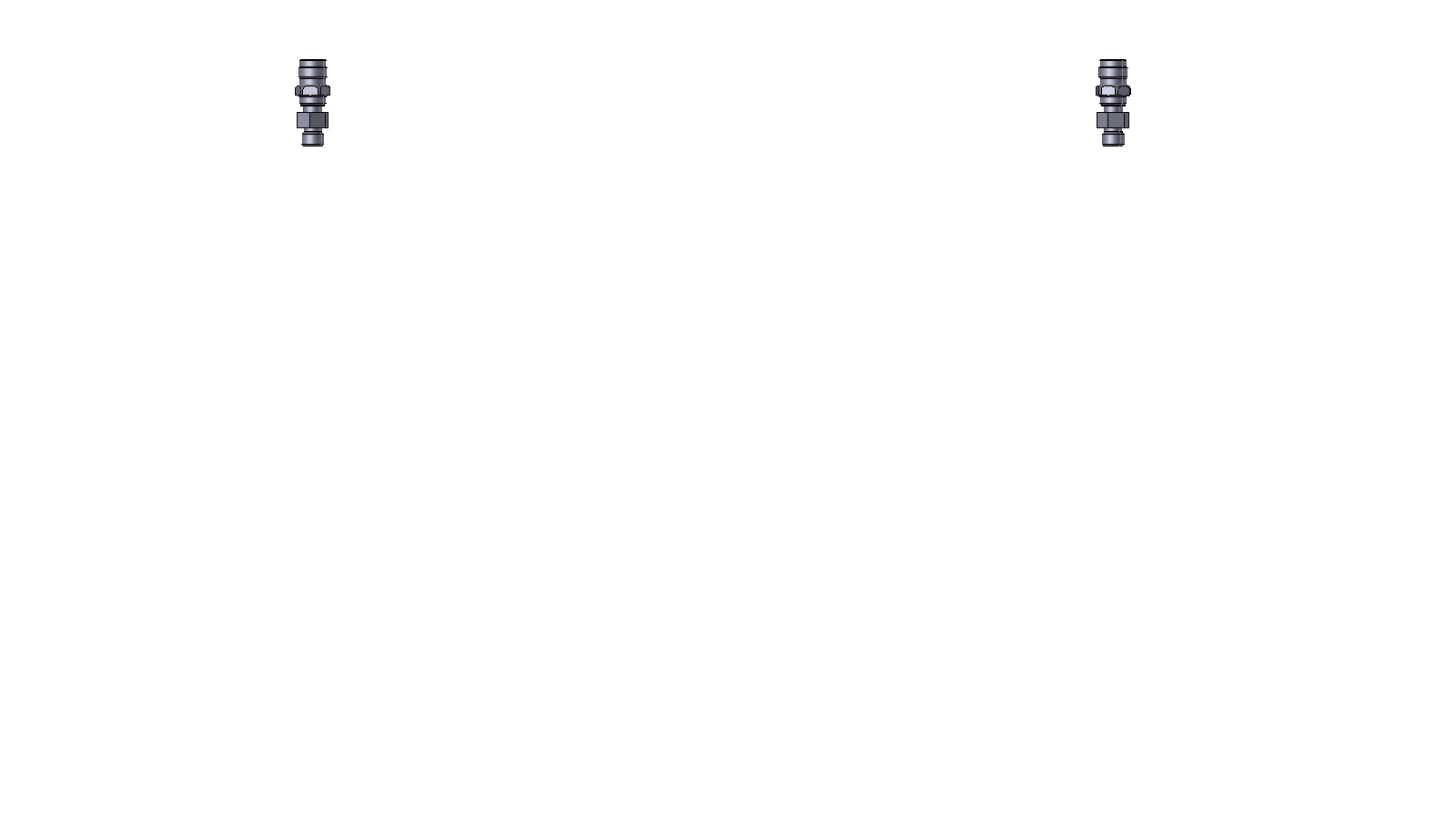

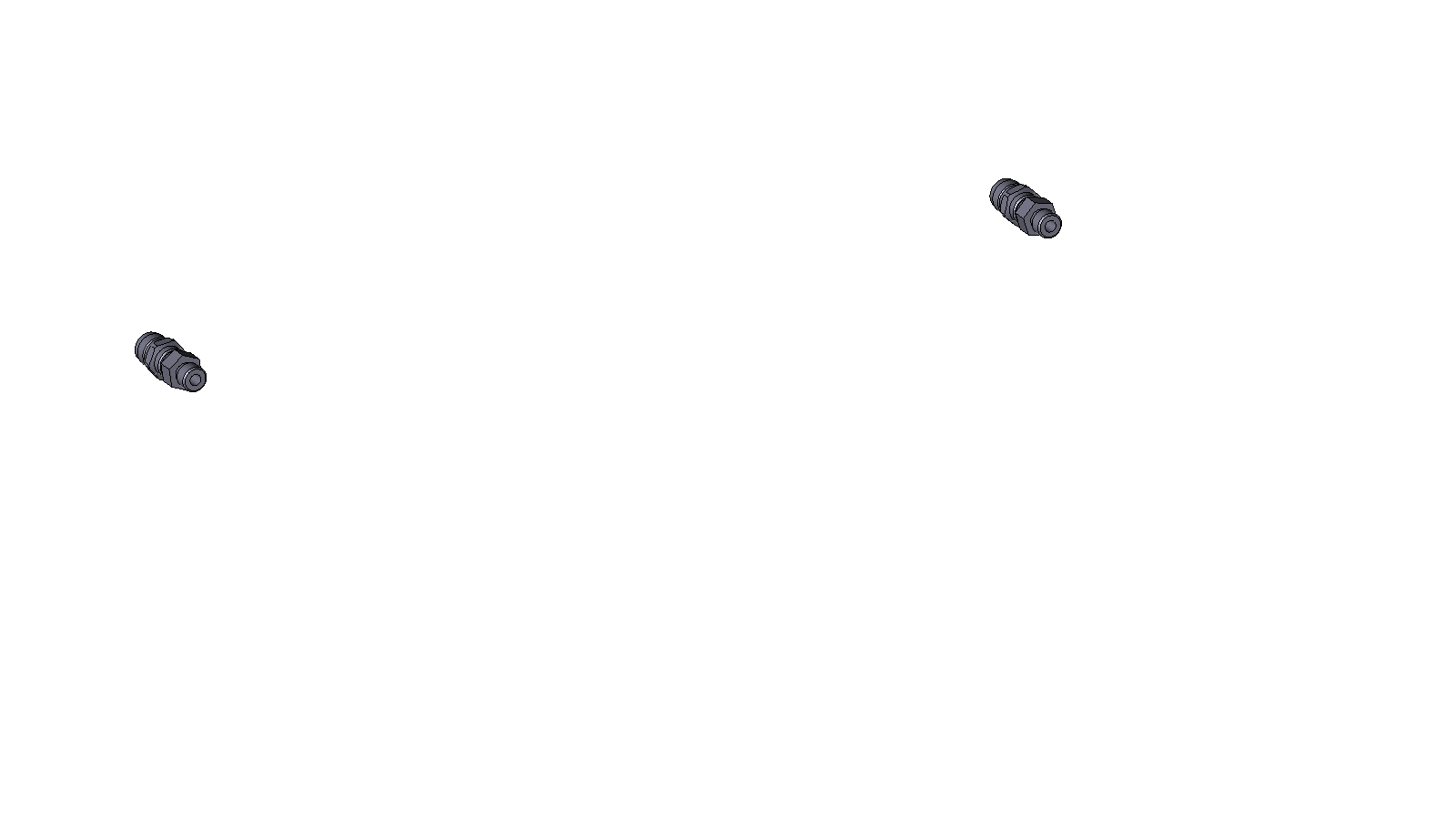

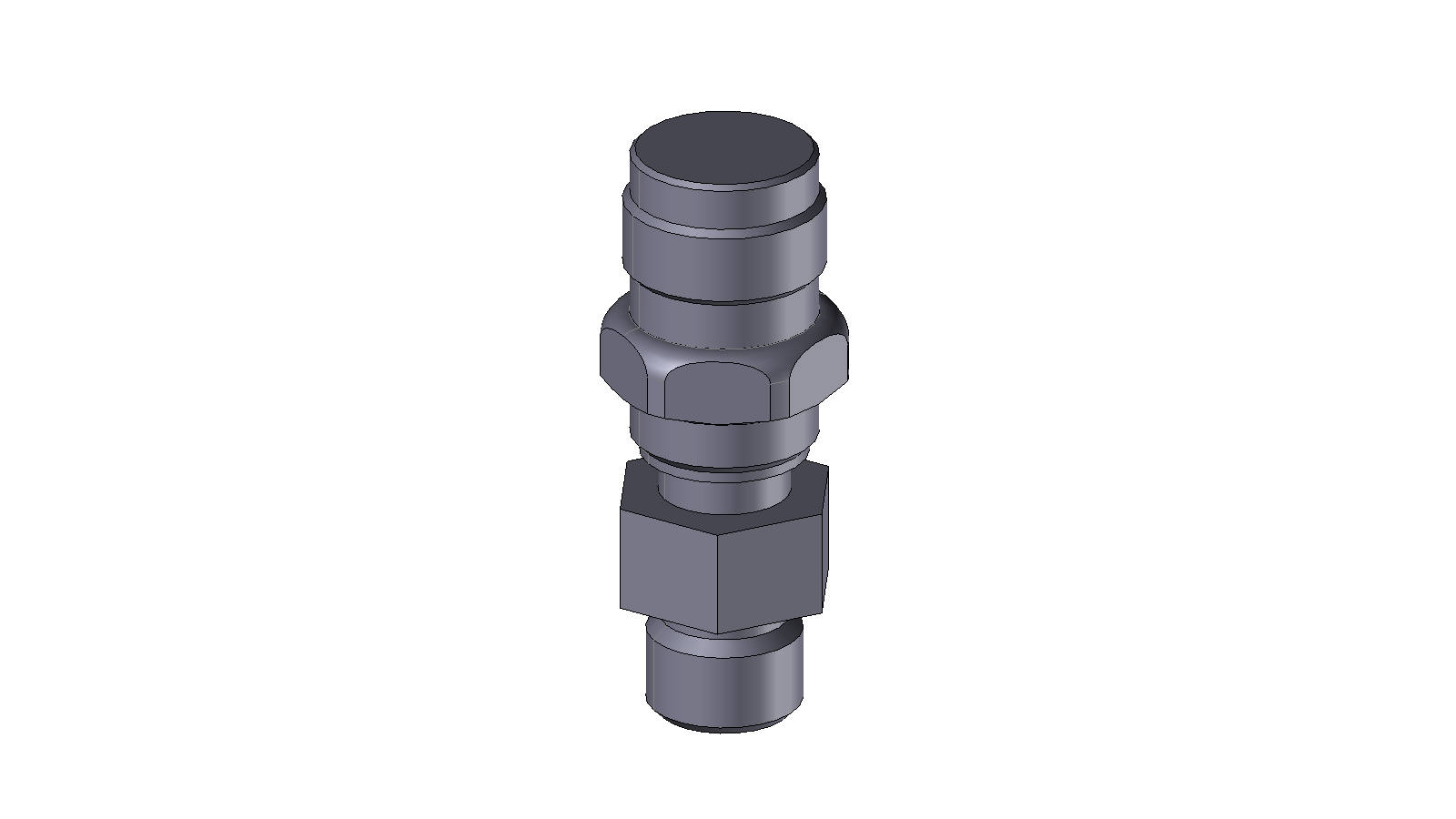

Fibre gas cells purging
Allows the system to be vented back to atmospheric pressure

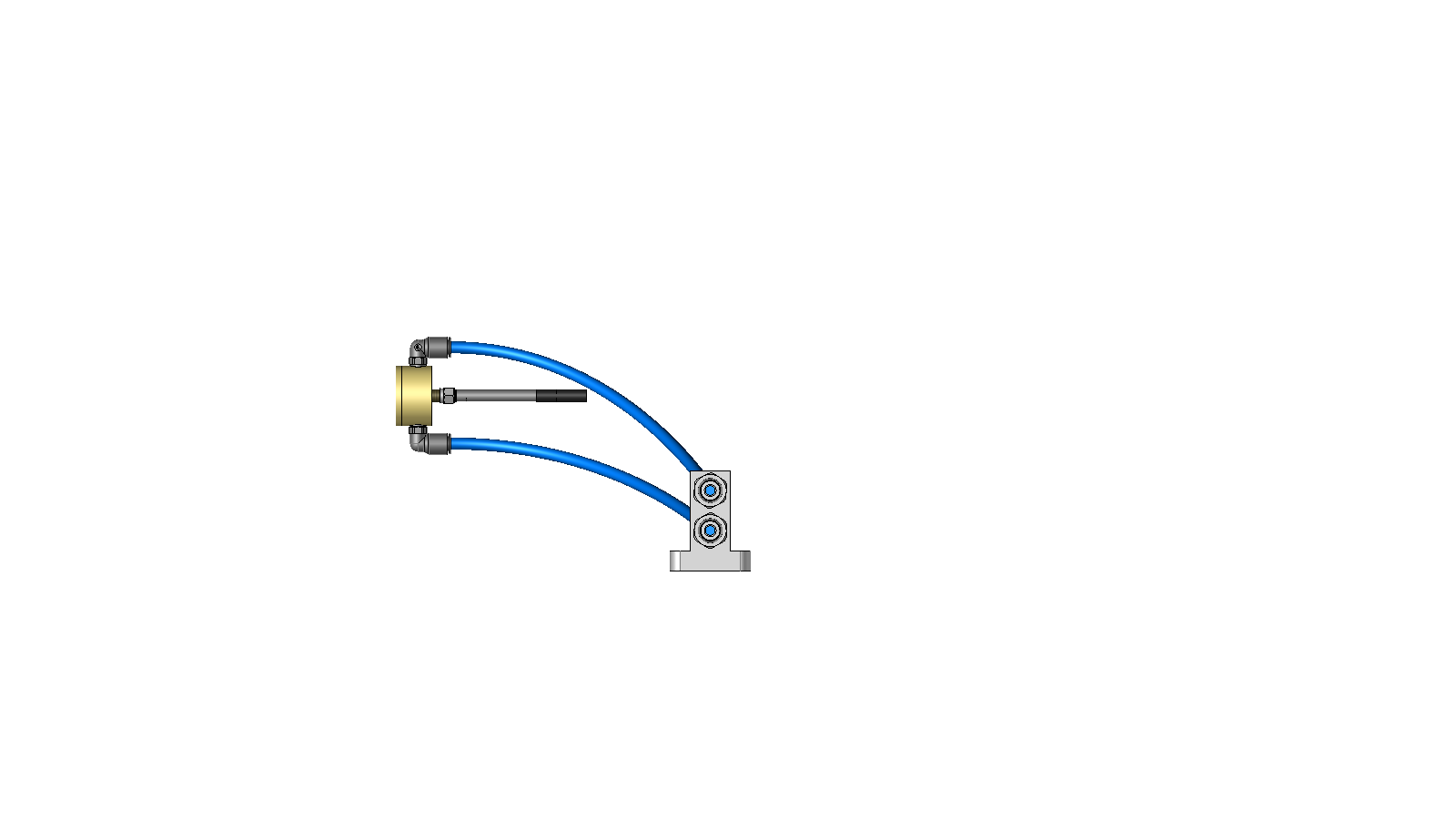

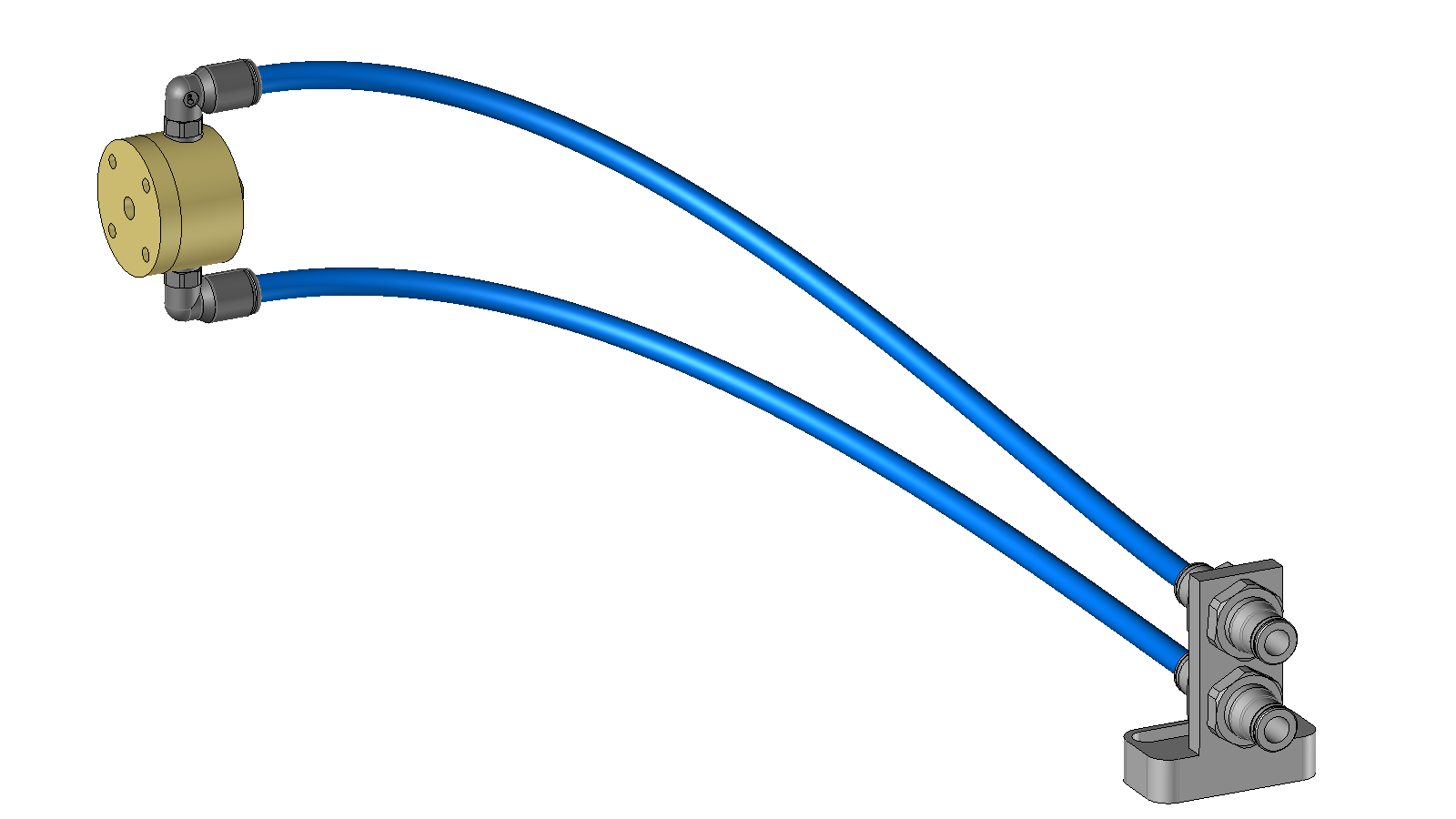

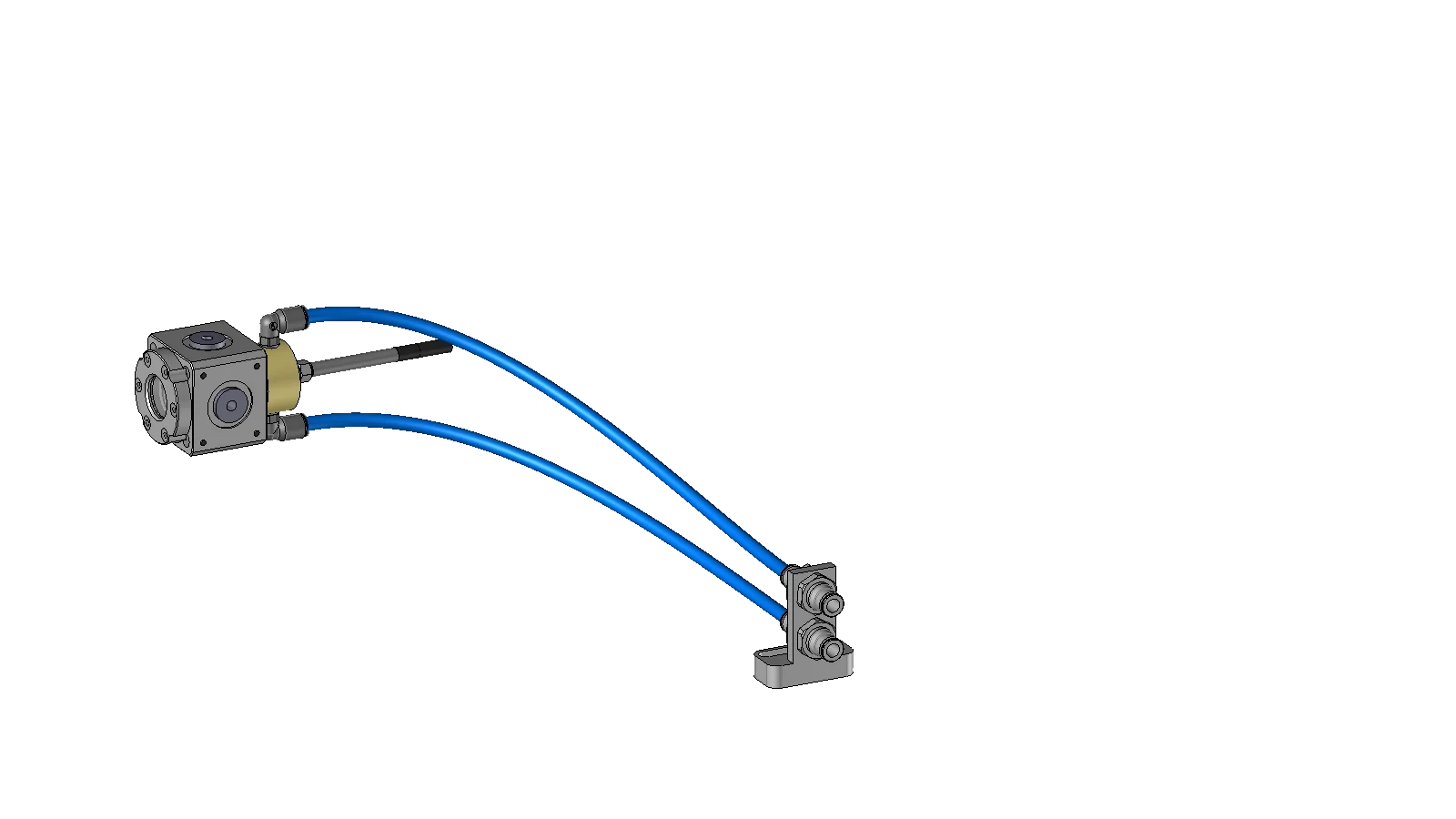

SMA-port watercooling
This system is designed to cool the SMA connector (depending on the average power of your laser)

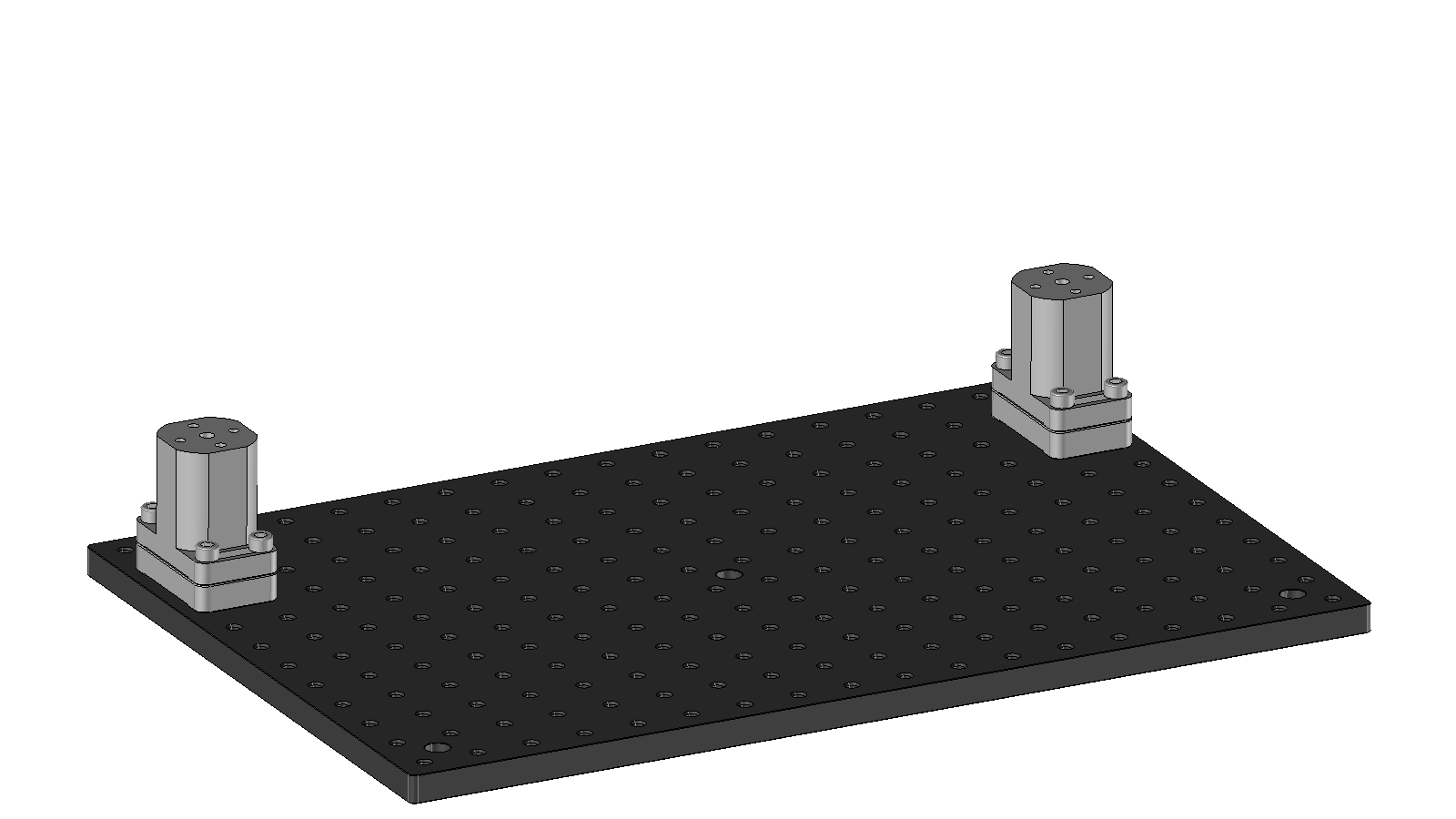

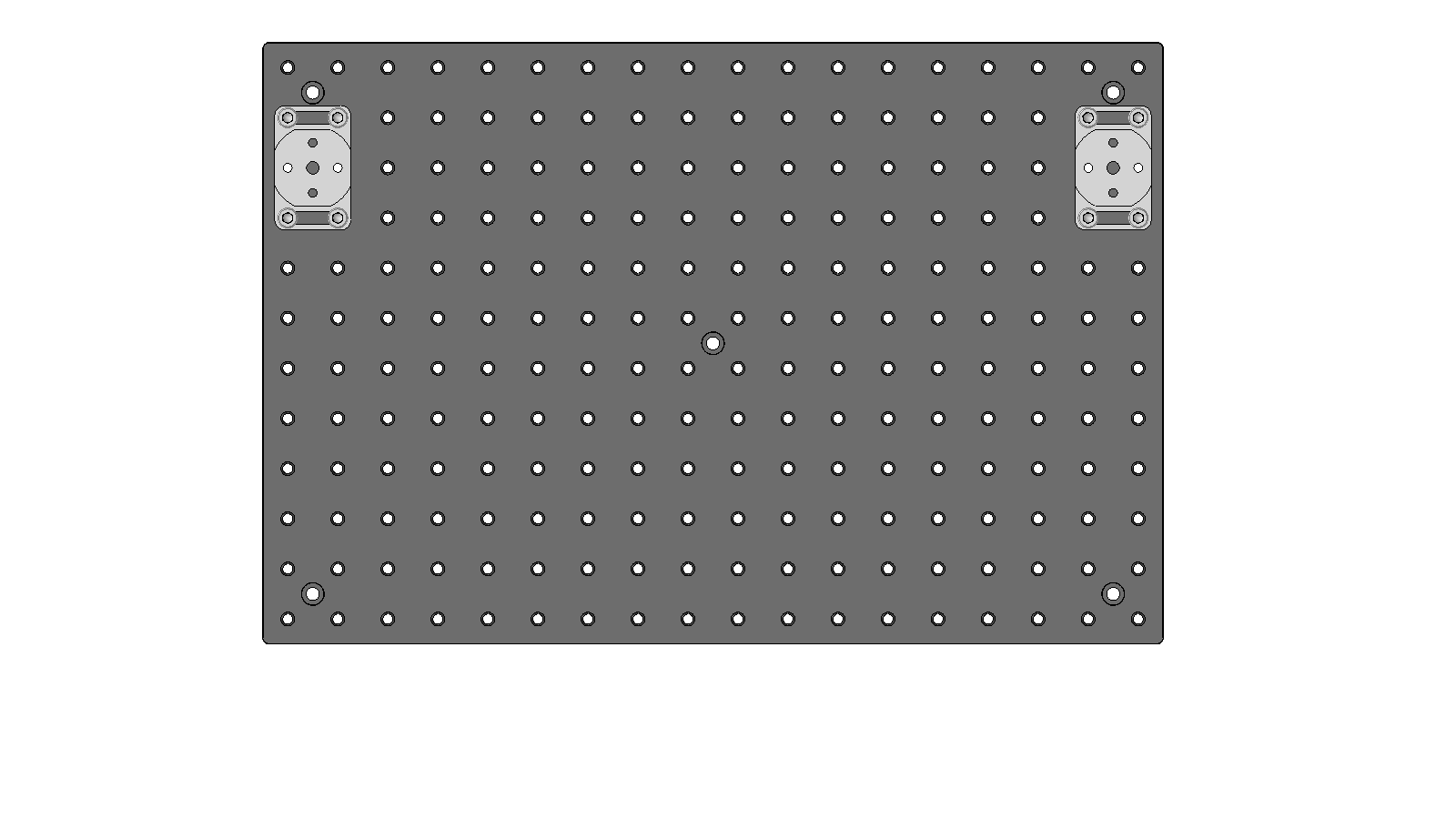

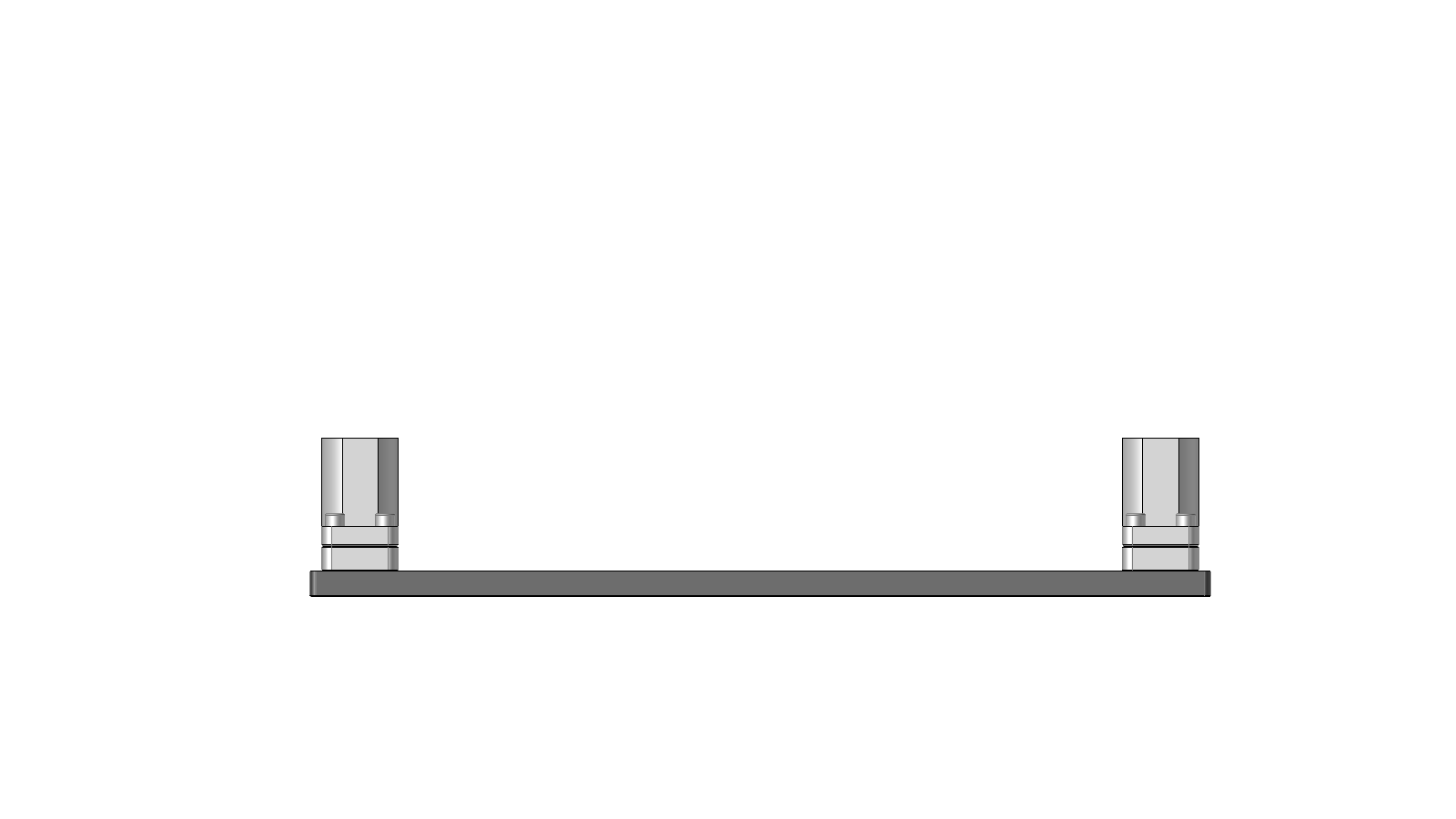

Platform breadboard
Ensures system compactness and stability

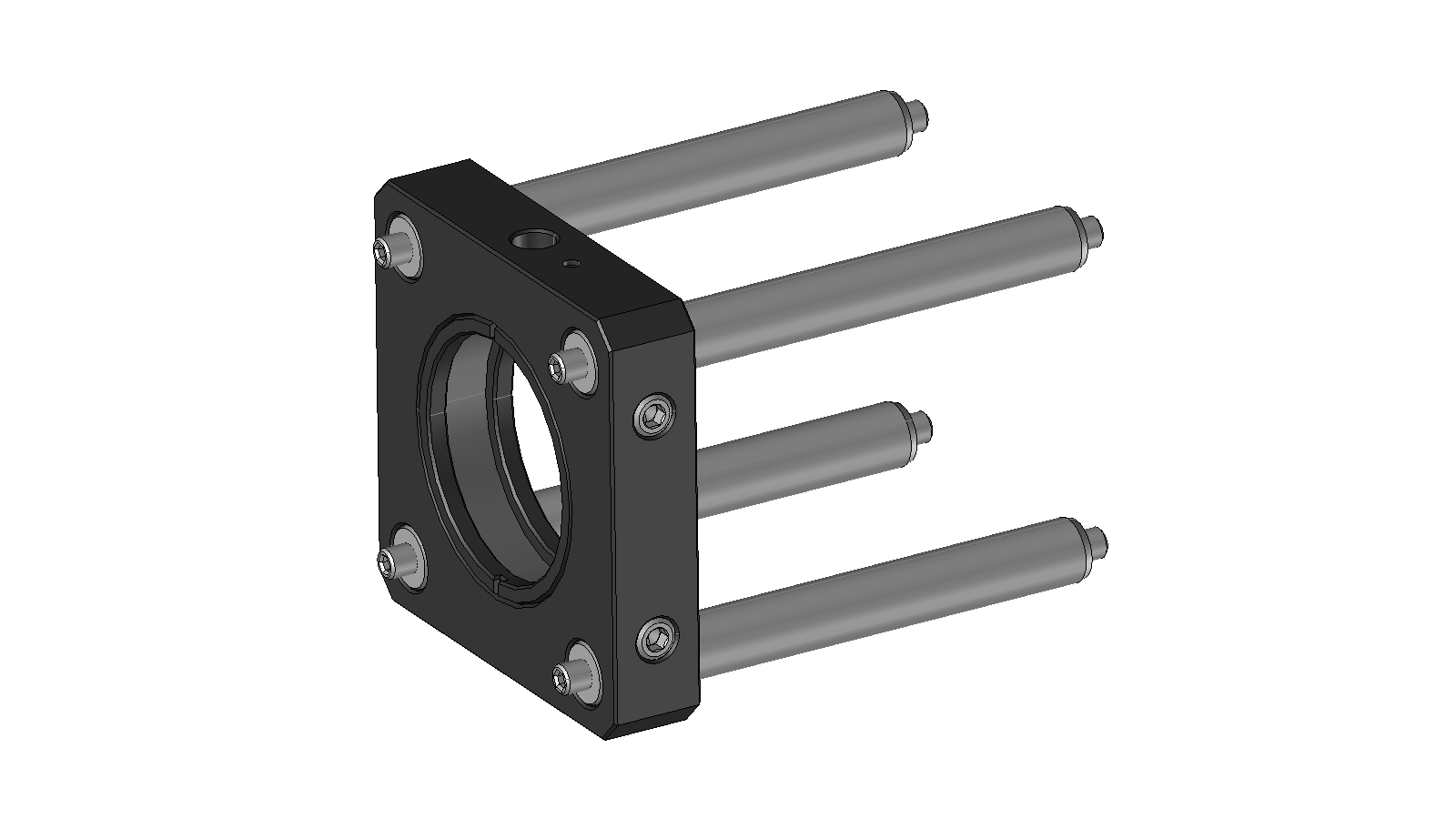

Output beam focusing
Miniature system for mounting an injection lens
Output beam collimation
Miniature system for mounting a collimation lens
